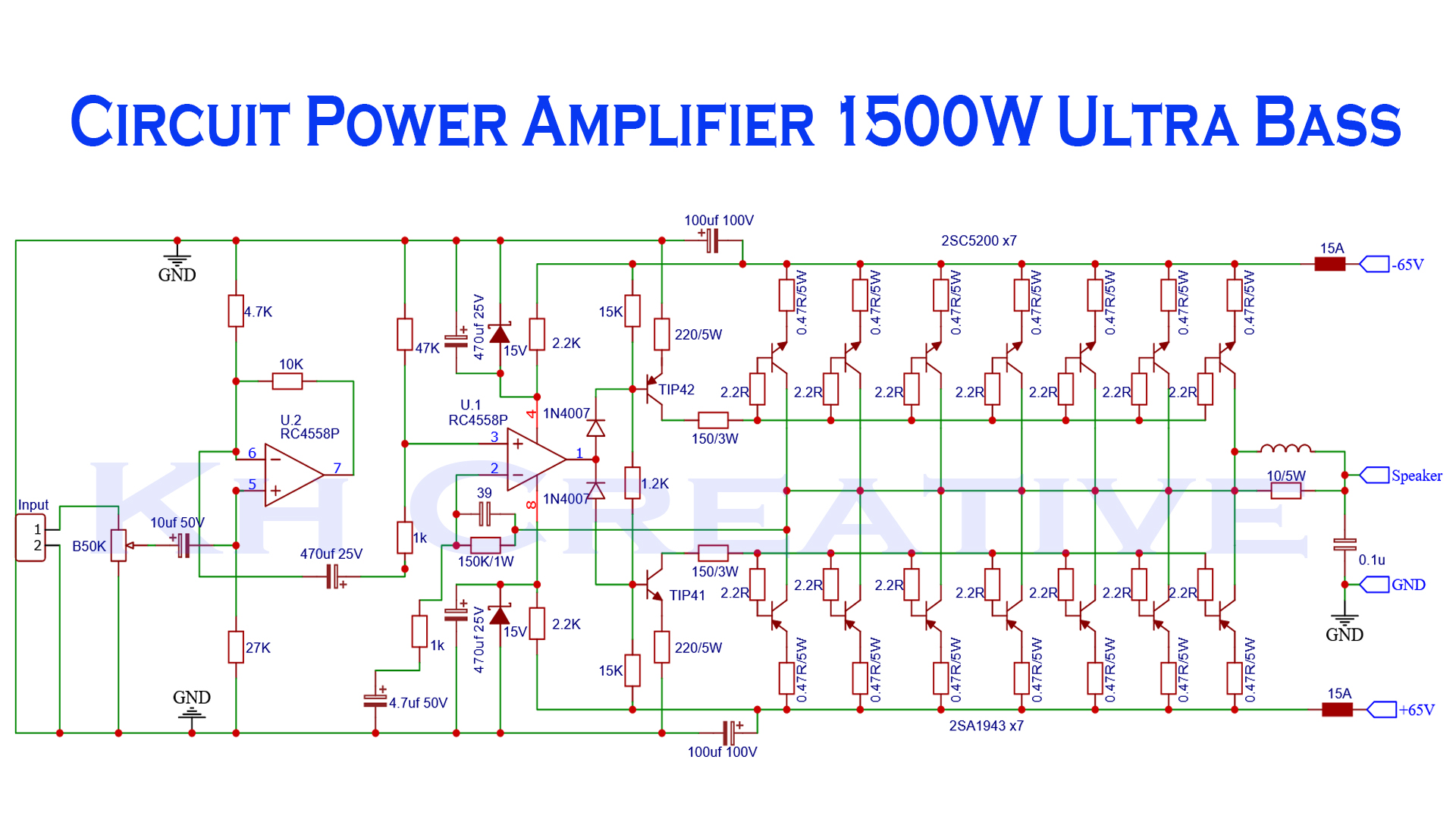

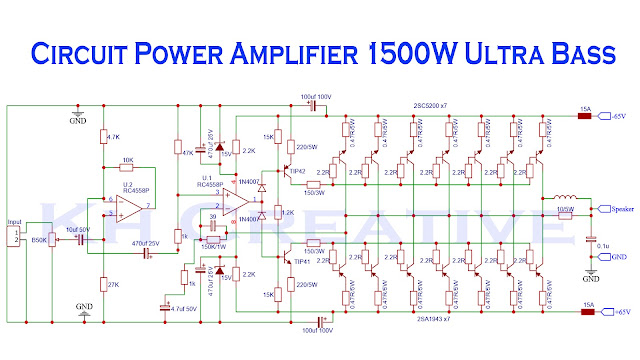

How to make Ultra Powerful Ampliifer Bass 1500W with 16Transistor, New Circuit amplifier at home



  Have:

1.Transistor

  • 2sc5200 x7
  • 2SA1943 x7
  • TIP41C
  • TIP42C
2. IC
  • 4558D
3. Resistor
  • 2.2R x 14
  • 0.47R/5W x14
  • 150R/3W x2
  • 220R/5W x2
  • 15K x2
  • 1.2K
  • 2.2K x2
  • 150K/1W
  • 47K
  • 1K x2
  • 10K
  • 27K
  • 4.7K
  • 10R/5W
4.Capacitor
  • 4.7uf 50V
  • 470uf 25V x3
  • 100uf 160V x2
  • 10uf 50V
  • 39 Mica
  • 0.1uf
5.Zener
  • 15V x2
6.Transform
  • 65V

 7.POT

  • B50K
8.Diode
  • 1N4007 x2
